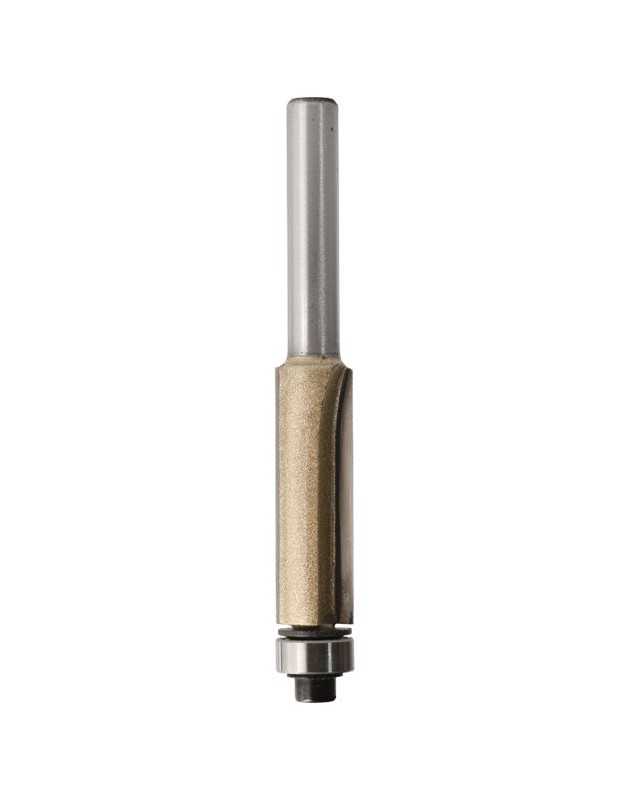

Trim Bits
Bearing Size: 1/4" x 1/8"
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 199-AA | 6.35 (1/4") | 20 | 6 |
| 199-AB | 6.35 (1/4") | 20 | 6.35 |
| 199-AC | 6.35 (1/4") | 20 | 8 |
Bearing Size: 3/8" x 3/16"
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 199 | 9.52 (3/8") | 30 | 8 |
| 199-A | 9.52 (3/8") | 30 | 12 |
| 199-B | 9.52 (3/8") | 20 | 6 |
| 199-C | 9.52 (3/8") | 20 | 6.35 |
| 199-D | 9.52 (3/8") | 38 | 8 |
| 199-E | 9.52 (3/8") | 38 | 12 |
| 199-F | 9.52 (3/8") | 50 | 8 |
| 199-G | 9.52 (3/8") | 50 | 12 |
Bearing Size: 1/2" x 3/16"
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 200 | 12.70 (1/2") | 30 | 8 |
| 200-A | 12.70 (1/2") | 30 | 12 |
| 200-B | 12.70 (1/2") | 30 | 12.70 |
| 200-C | 12.70 (1/2") | 20 | 6 |
| 200-D | 12.70 (1/2") | 20 | 6.35 |
| 200-E | 12.70 (1/2") | 38 | 8 |
| 200-F | 12.70 (1/2") | 38 | 12 |
| 200-G | 12.70 (1/2") | 50 | 8 |
| 200-H | 12.70 (1/2") | 50 | 12 |
High Performance
| Code No. | Bearing / Dia. (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 5073 | 6.35 | 20 | 6 |
| 5074 | 6.35 | 20 | 6.35 |
| 5075 | 9.5 | 32 | 6.35 |
| 5076 | 9.5 | 32 | 8 |
| 5077 | 12.7 | 30 | 12 |
