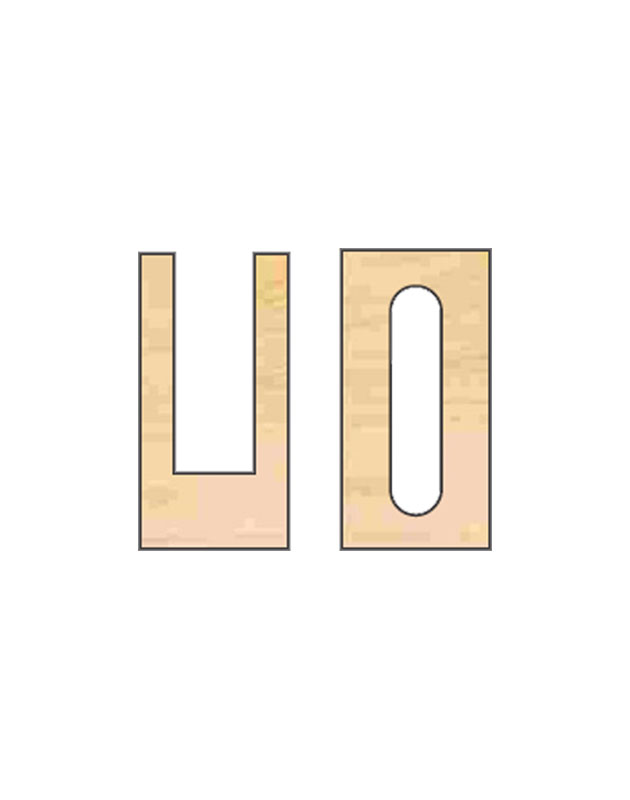

Straight Bits (Cleaning Bottom Bits)
Cutting Dia: 4mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 120-A | 4 | 12 | 8 |
| 120-B | 4 | 12 | 8 |
| 120-C | 4 | 12 | 6.35 |
| 401 | 4 | 12 | 12 |
Cutting Dia: 6mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 120 | 6 | 15 | 8 |
| 120-AA | 6 | 15 | 6 |
| 120-AB | 6 | 15 | 6.35 |
| 402 | 6 | 15 | 12 |
Cutting Dia: 8mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 121 | 8 | 20 | 8 |
| 121-A | 8 | 20 | 6 |
| 121-B | 8 | 20 | 6.35 |
| 403 | 8 | 20 | 12 |
| 121-D | 8 | 30 | 8 |
| 404 | 8 | 30 | 12 |
| 121-F | 8 | 35 | 8 |
| 405 | 8 | 35 | 12 |
Cutting Dia: 10mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 122 | 10 | 20 | 8 |
| 122-A | 10 | 20 | 6 |
| 122-B | 10 | 20 | 6.35 |
| 406 | 10 | 20 | 12 |
| 122-D | 10 | 30 | 8 |
| 407 | 10 | 30 | 12 |
| 122-F | 10 | 38 | 8 |
| 408 | 10 | 38 | 12 |
| 122-H | 10 | 50 | 8 |
| 409 | 10 | 50 | 12 |
Cutting Dia: 12mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 123 | 12 | 20 | 8 |
| 123-A | 12 | 20 | 6 |
| 123-B | 12 | 20 | 6.35 |
| 410 | 12 | 20 | 12 |
| 123-D | 12 | 30 | 8 |
| 411 | 12 | 30 | 12 |
| 123-F | 12 | 38 | 12.7 |
| 123-G | 12 | 38 | 8 |
| 412 | 12 | 38 | 12 |
| 123-I | 12 | 50 | 8 |
| 413 | 12 | 50 | 12 |
| 414 | 12 | 63 | 12 |
| 414-A | 12 | 75 | 12 |
Cutting Dia: 15mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 124-A | 15 | 20 | 8 |
| 124-B | 15 | 20 | 12 |
| 124-C | 15 | 32 | 8 |
| 414-B | 15 | 32 | 12 |
| 124-E | 15 | 50 | 12 |
| 124-F | 15 | 63 | 12 |
| 124-G | 15 | 75 | 12 |
Cutting Dia: 16mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 415 | 16 | 20 | 8 |
| 416 | 16 | 32 | 12 |
| 417 | 16 | 50 | 12 |
| 418 | 16 | 63 | 12 |
Cutting Dia: 19mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 124 | 19 | 25 | 8 |
| 419 | 19 | 25 | 12 |
| 124-AB | 19 | 38 | 8 |
| 420 | 19 | 38 | 12 |
| 421 | 19 | 50 | 12 |
Cutting Dia: 25mm.
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 125 | 25 | 25 | 8 |
| 422 | 25 | 25 | 12 |
| 423 | 25 | 38 | 12 |
| 424 | 25 | 50 | 12 |
| 125-A | 30 | 33 | 12 |
| 125-B | 35 | 35 | 12 |
Surface Cleaning
| Code No. | Diameter (mm) | Cutting Length | Shank (mm) |
|---|---|---|---|
| 5020 | 25 | 12 | 12 |
| 5021 | 28 | 12 | 12 |
| 5022 | 30 | 12 | 12 |
| 5023 | 32 | 12 | 12 |
| 5024 | 35 | 12 | 12 |
| 5025 | 38 | 12 | 12 |
| 5026 | 40 | 12 | 12 |
| 5027 | 45 | 12 | 12 |
| 5028 | 50 | 12 | 12 |
