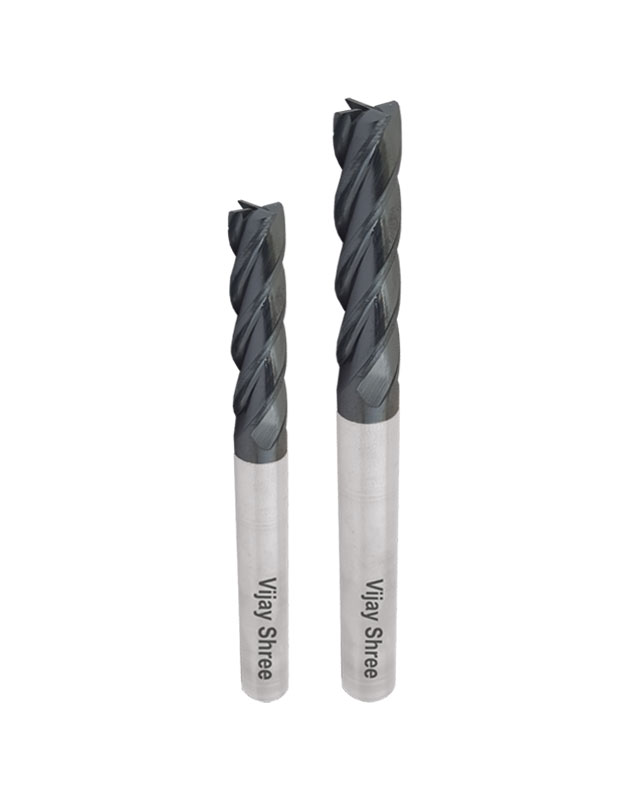

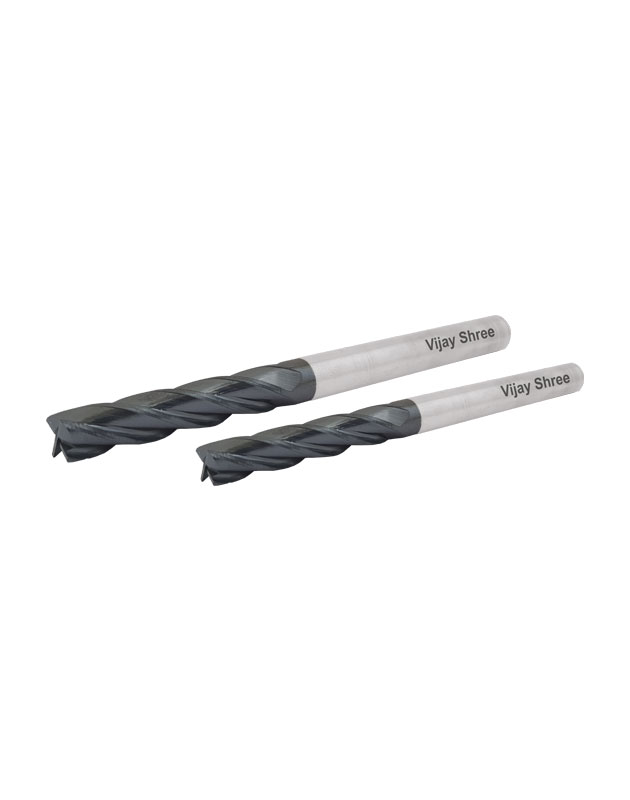

4 Flute Spiral End Mill

Use For : 2D & Through Cutting on solid wood, Particle Board, MDF etc...
Code No. Diameter Flute Length Total Length Shank Diameter
4E-3.16 3 16 50 3
4E-3.25 3 25 75 3
4E-4.20 4 20 50 4
4E-4.25 4 25 50 4
4E-4.35 4 35 75 4
4E-5.20 5 20 50 5
4E-5.25 5 25 50 5
4E-5.35 5 35 75 5
4E-6.20 6 20 50 6
4E-6.25 6 25 50 6
4E-6.35 6 35 75 6
4E-6.50 6 50 100 6
4E-8.30 8 30 60 8
4E-8.40 8 40 75 8
4E-8.50 8 50 100 8
4E-10.35 10 35 75 10
4E-10.50 10 50 100 10
4E-10.75 10 75 125 10
4E-12.35 12 35 75 12
4E.12.50 12 50 100 12
4E-12.75 12 75 125 12
