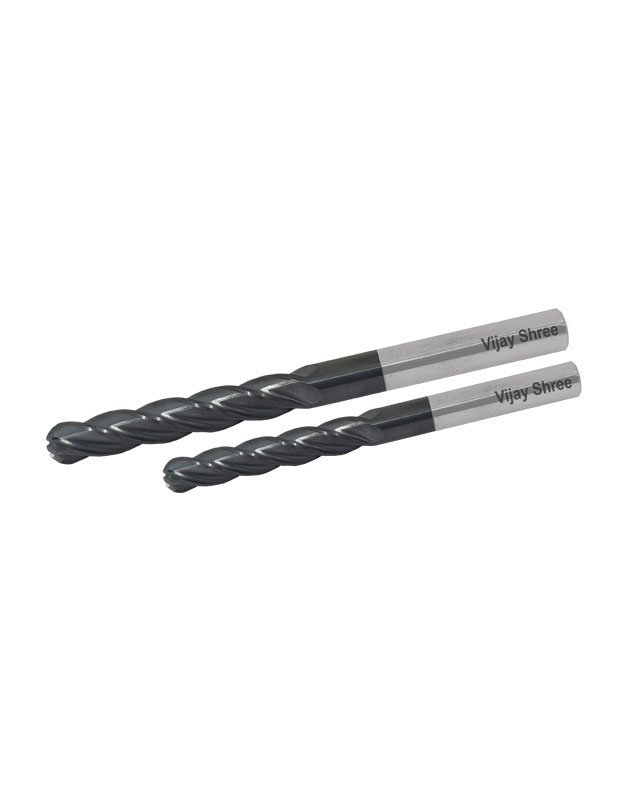

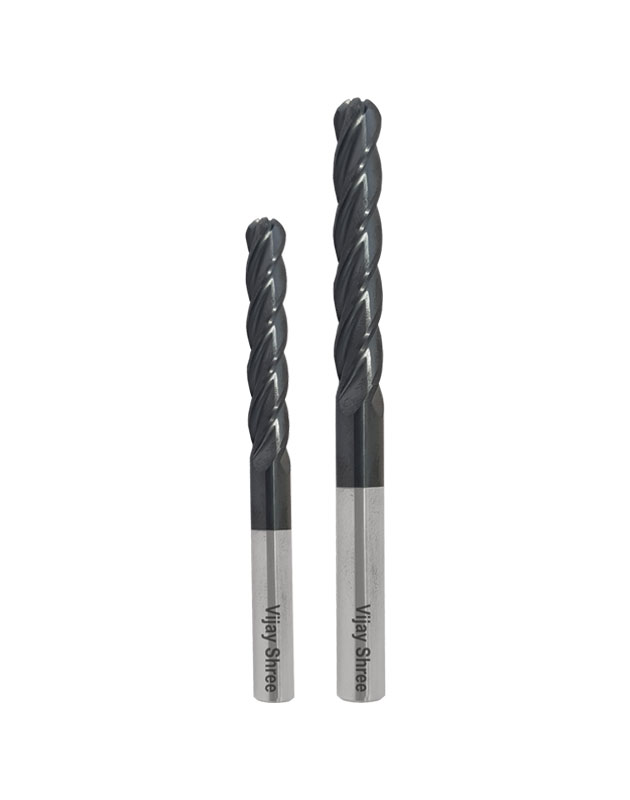

4 Flute Spiral Ball Nose
Use For : 3D & Through Cutting on solid wood, Particle Board, MDF etc...
| Code No. | Diameter | Flute Length | Total Length | Shank Diameter |
|---|---|---|---|---|
| 4FBN-1.6.50 | 1 | 6 | 50 | 3 |
| 4FBN-2.8.50 | 2 | 8 | 50 | 3 |
| 4FBN-3.16.50 | 3 | 16 | 50 | 3 |
| 4FBN-3.25.50 | 3 | 25 | 50 | 3 |
| 4FBN-4.14.50 | 4 | 15 | 50 | 4 |
| 4FBN-4.25.50 | 4 | 25 | 50 | 4 |
| 4FBN-4.30.60 | 4 | 30 | 60 | 4 |
| 4FBN-5.16.50 | 5 | 16 | 50 | 5 |
| 4FBN-5.25.50 | 5 | 25 | 50 | 5 |
| 4FBN-5.35.75 | 5 | 35 | 75 | 5 |
| 4FBN-6.18.50 | 6 | 18 | 50 | 6 |
| 4FBN-6.25.50 | 6 | 25 | 50 | 6 |
| 4FBN-6.30.60 | 6 | 30 | 60 | 6 |
| 4FBN-6.35.75 | 6 | 35 | 75 | 6 |
| 4FBN-6.50.100 | 6 | 50 | 100 | 6 |
| 4FBN-8.25.50 | 8 | 25 | 50 | 8 |
| 4FBN-8.30.60 | 8 | 30 | 60 | 8 |
| 4FBN-8.35.75 | 8 | 35 | 75 | 8 |
| 4FBN-8.50.100 | 8 | 50 | 100 | 8 |
| 4FBN-10.25.50 | 10 | 25 | 50 | 10 |
| 4FBN-10.35.75 | 10 | 35 | 75 | 10 |
| 4FBN-10.50.100 | 10 | 50 | 100 | 10 |
| 4FBN-10.75.125 | 10 | 75 | 125 | 10 |
| 4FBN-12.25.50 | 12 | 25 | 50 | 12 |
| 4FBN-12.35.75 | 12 | 35 | 75 | 12 |
| 4FBN-12.50.100 | 12 | 50 | 100 | 12 |
| 4FBN-12.75.125 | 12 | 75 | 125 | 12 |
